S2C Module
12 Channels 120Vac Input, 4 Channels 4-20mA and Cellular Tamper-Proof Antenna
Supervisory Control and Data Acquisition (SCADA) to Cloud using Cellular
- Part# S2C Module $2,000.00
- Cellular Fee $300.00 yearly Cellular fee
Wireless Cellular Alarm Monitoring

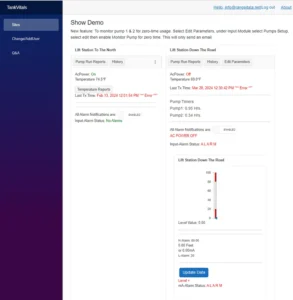

This S2C unit will collect data, check temperatures and monitor alarms. It sends the updated data to the Cloud for viewing from anywhere in the world. Real-time alarm and notifications are sent directly to your phone and/or email address to reduce the risk of severe damage. In the event of a cell tower issue, TankVitals S2C automatically connect to another tower while the carrier corrects the issue or in the event of lost signal the Optional Cellular signal falure will activate the relay which can avtive the red light/horn.
- Notifications: Voice, SMS Text Message and/or Email
- Reports: Data Export Excel Spreadsheets and PDFs
- Input 4-20mA 4 Isolated Channels (10 ohms)
- Includes VPN (Virtual Private Network)
- Real-time alarms
- Bluetooth Communication Connection
- Notifications sent directly to your phone and/or email
- Solid State power backup *no batteries to replace!
- Output Custom APIs Alarms to Wonderware (push method SCADA system
- Easily graph daily pump runtimes
- 3dbi Cellular Tamper-Proof Antenna bolt down
- Optional Cellular signal falure will activate relay
- Requires 120Vac
- Input 4-20mA 4 Channels
- Up to 12 Input Ports *each timer removes 1-Input port
- Up to 4 Run Timers Selectable
- 1 Relay to Control
- Bluetooth Communication Connection
- Temperature Sensor -40°F to 185°F (-40°C to 85°C)
| Title | Information |
|---|---|
| 4-20mA Inputs: | 4 Channels, Isolated Two-wire Operation (input impedance 10 ohms) |
| Power Source: | 120Vac |
| Weight | 1.11 LB or 503.49 Grams |
| Alarm Notication: | Voice, Text, Email each Selectable |
| Run Timers Inputs: | Run Timer on Inputs 1-4 (Selectable in software) |
| Alarm Inputs: | 12 Inputs for monitoring alarms 120Vac *each run timer converts the alarm input to a Timer Input |
| Case: | BOX Plastic, ABS/PC Blend, GRAY, 4.183″ L x 3.551″ W (106.25mm x 90.20mm) |
| Cellular Providers: | US: Verizon | Canada: Rogers |
| Cellular Antenna Included: | 3dBi Cellular DOME SMA Male, Panel Screw Mount, Omni-directional |
| 1 Relay | Control 1 relay 2 Amp 500VA, 440W max swtiching voltage 250Vac, 220Vdc * RDI will code custom interface software reqired for your device |
| Device Operating Temperature: | -40°F to 185°F (-40°C to 85°C) |
